Vanse Laser Levelling Machine YZS2-4

Stock Code: YZS2-4

In stock

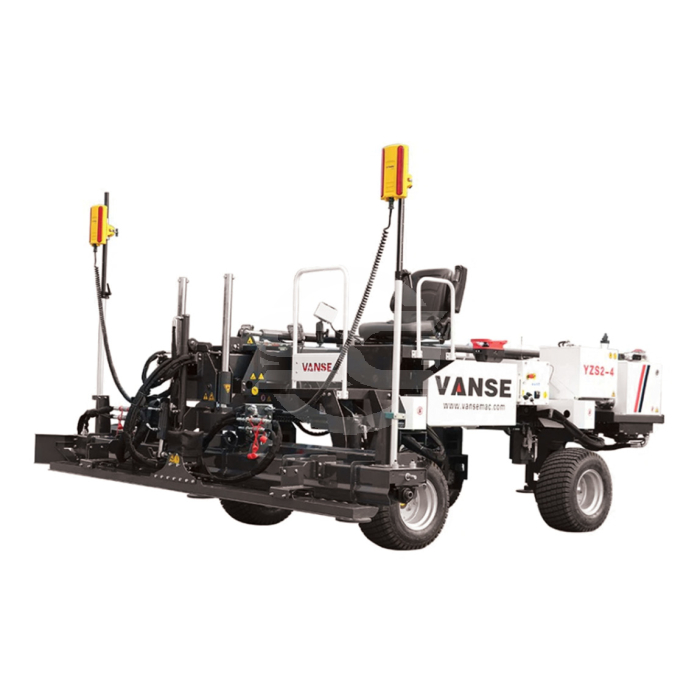

VANSE YZS2-4 Concrete Levelling Machine

The telescopic boom of the YZS2-4 is a key feature with a reach of 5.5 meters (18ft). With an advanced remote control system for hand-held application. This vibratory laser controlled boom screed. The advanced remote system of the YZS2-4 is a game-changer for on-site operations. It provides remote electronic control servo hydraulic control for the steering system, allowing the operator to select between two-wheel, four-wheel, or crab-shaped steering from a safe distance.

• Model: Mechanical hydraulic boom
• Power: YANMAR 3TNV80F, 17.8kW/3000RPM vertical 4-stroke water-cooled diesel engine
• Electric circuit: 12V DC DANFOSS control system, vehicle waterproof wiring harness
• Laser control system: Equipped with a full set of American Trimble laser systems. Swiss Leica and German Moba full set of laser systems (including: transmitter, receivers, control system) are optional.

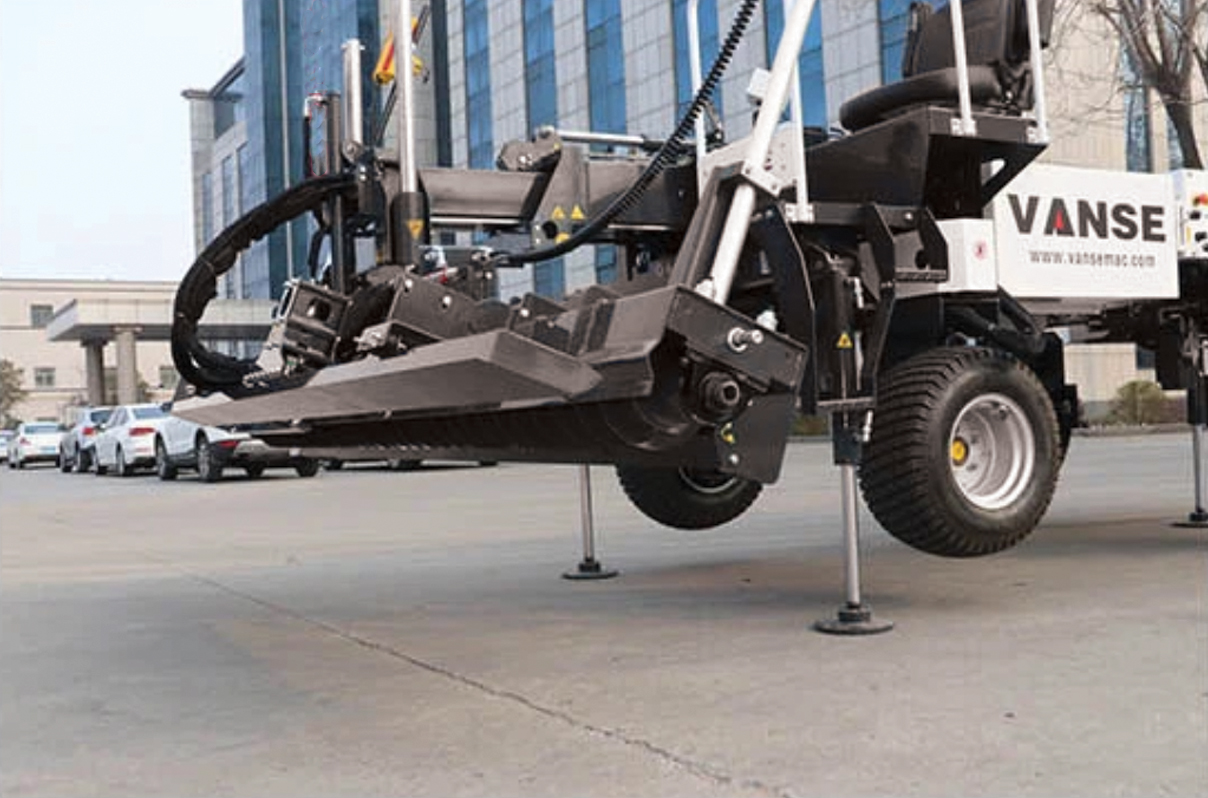

• Outrigger control system: Automatically controlled one-button lifting system
• Tire: 26 x 12-12NHS Studless Tire

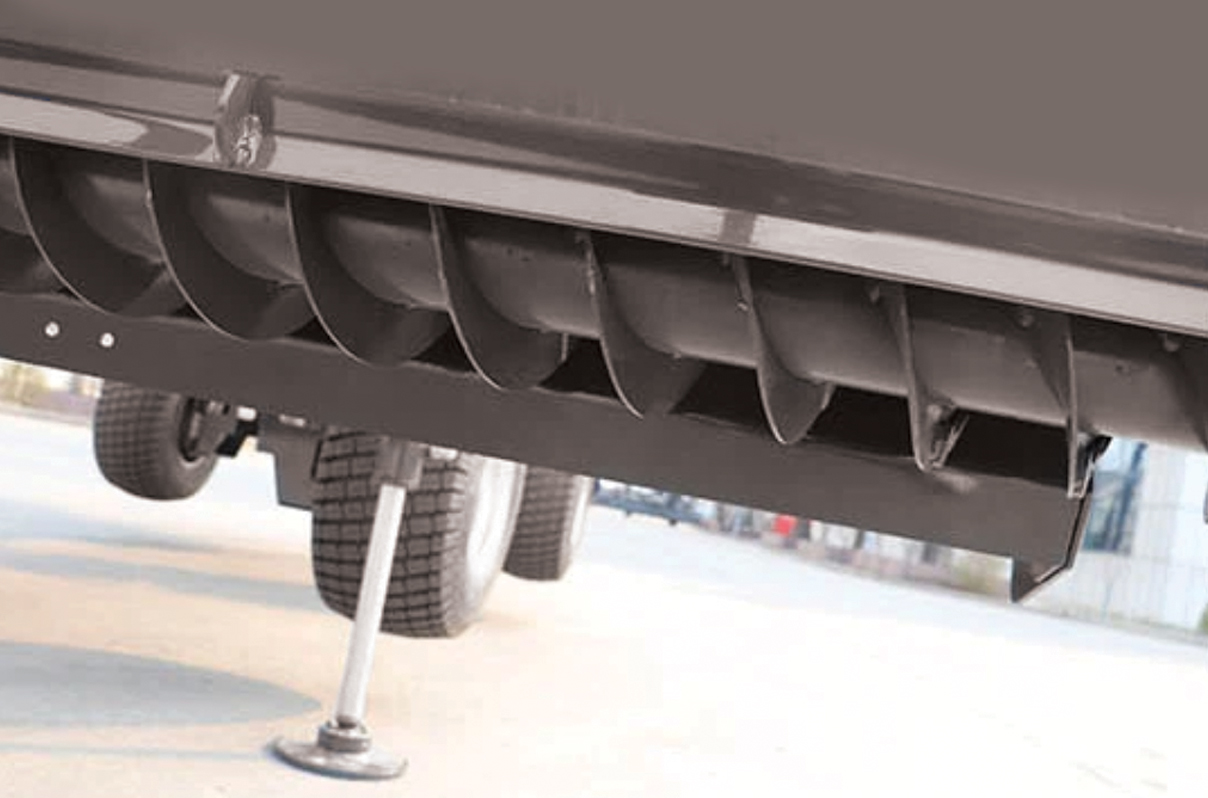

• Paving method: Hydraulic screw conveyor paving

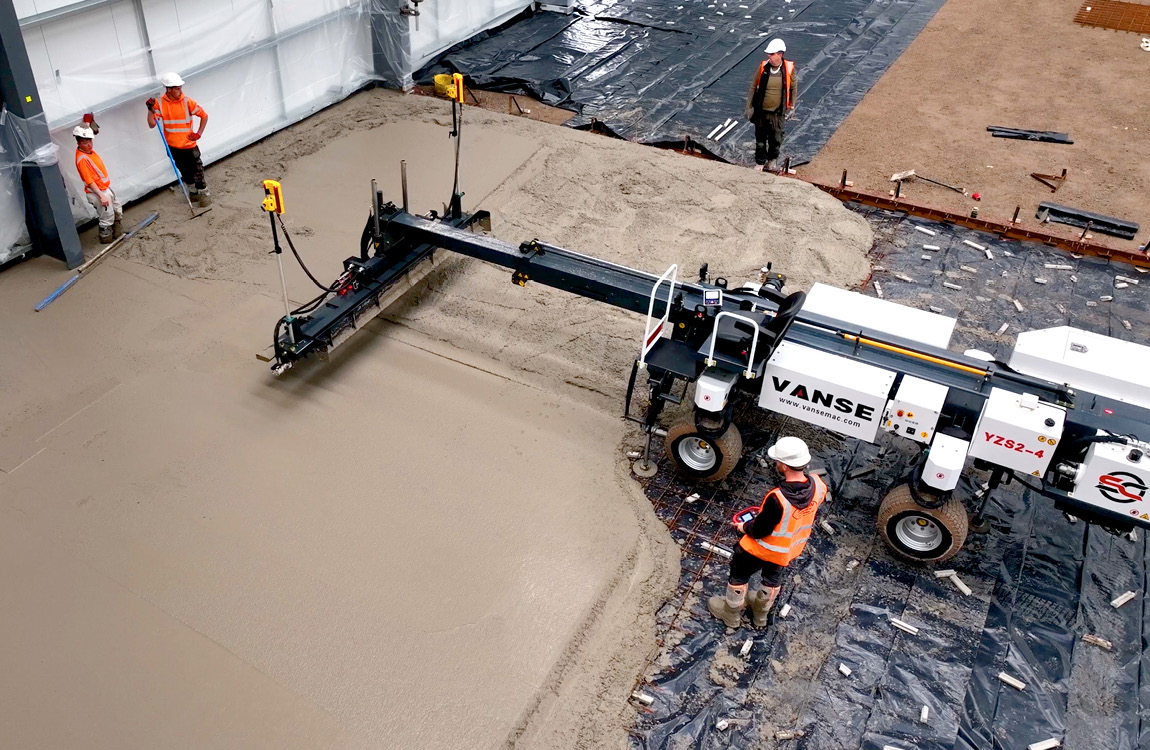

Leveling Width: Maximizing Productivity With Wide Coverage

The YZS2-4 offers an impressive levelling width of 3 meters (9.84 feet). With its extensive working width, this equipment can swiftly cover expansive regions, significantly minimizing the number of times it needs to be operated to finish a project. Be it the spacious floor of a massive warehouse or a large outdoor plaza, the broad levelling breadth serves as a catalyst for enhanced productivity. By doing so, it effectively cuts down on both time consumption and labour expenses for each task, making every job more efficient and cost-effective.

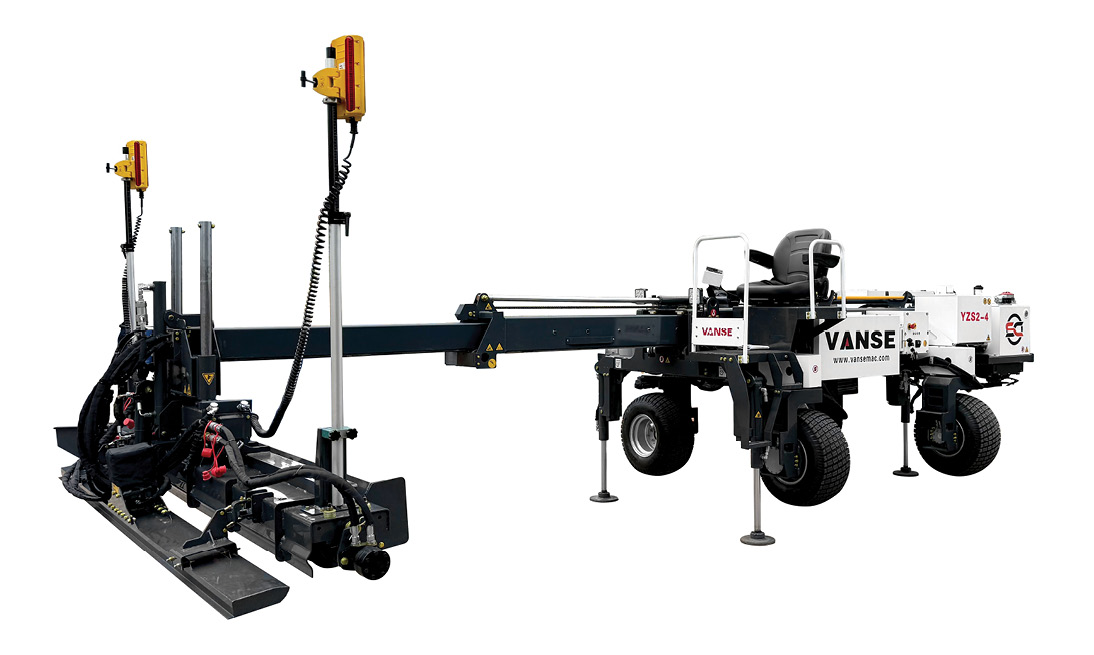

Telescopic Boom: Extended Reach And Precision Placement

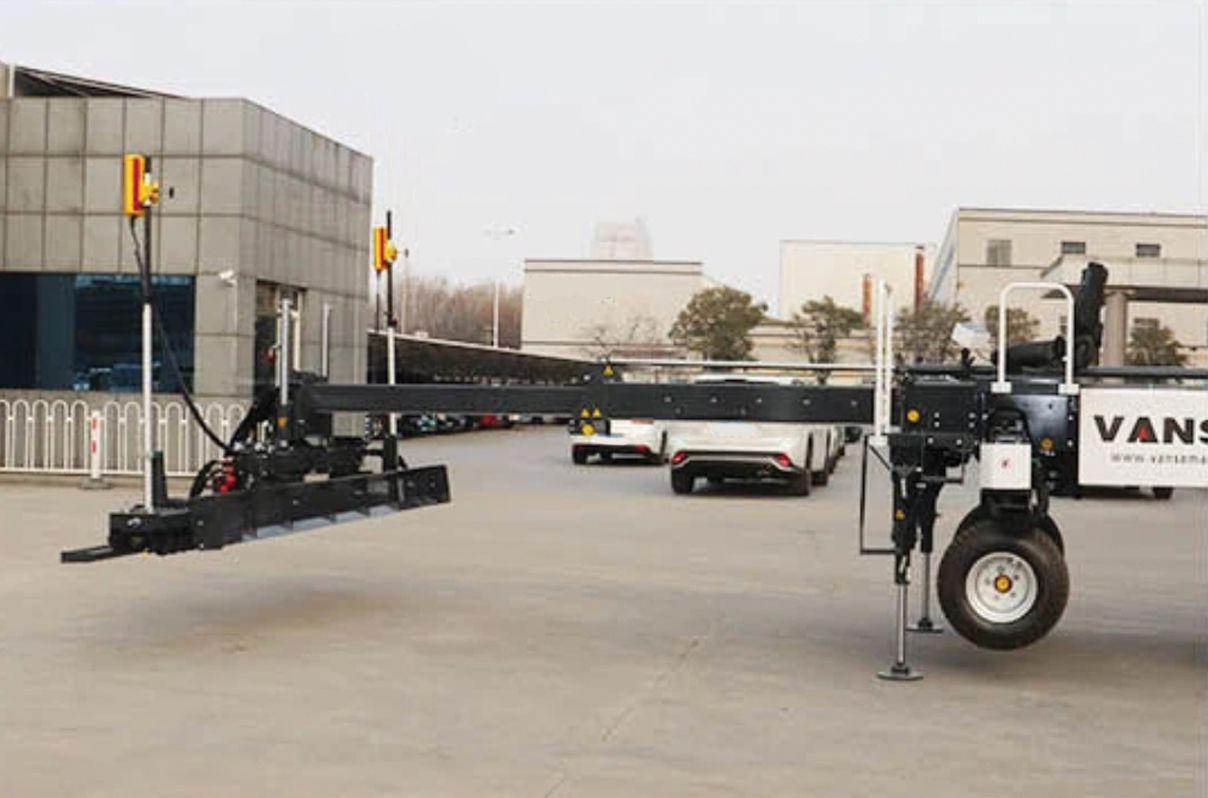

The telescopic boom of the YZS2-4 is a key feature for its versatility. Measuring 5.5 meters (18 feet) in length and with the ability to adjust left and right on the vehicle body, it provides extended reach. In various working scenarios, from reaching into tight corners to spanning large open areas, the telescopic boom's high-strength steel plate construction and roller telescopic system with 0.08-millimetre precision ground guide rails and bottom rails ensure smooth and efficient operation. This not only enables precise levelling but also helps in reducing fuel consumption due to its low-resistance design.

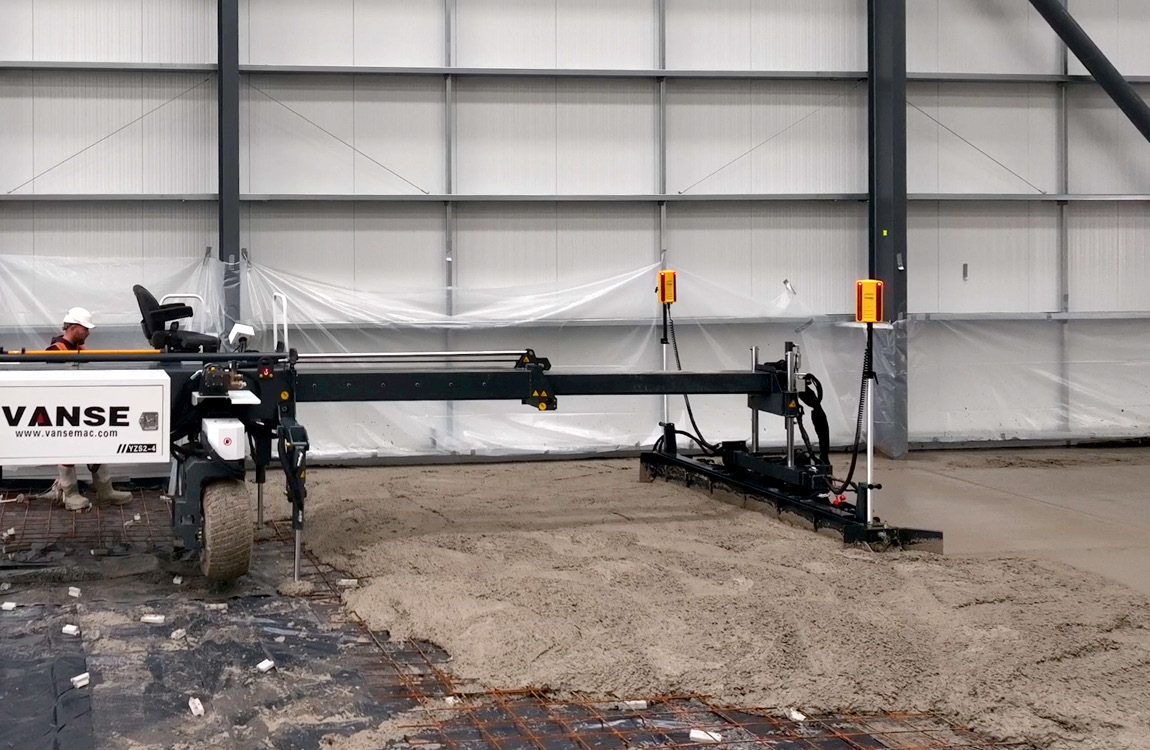

Exciting Force: Tailored Compaction For Optimal Results

With an exciting force ranging from 200-900N(MAX), the YZS2-4 offers customizable compaction capabilities. This variable exciting force can be adjusted according to the specific requirements of the concrete mix and the desired level of compaction. Whether it’s a thin layer of concrete or a more substantial pour, the machine can deliver the right amount of force to achieve a smooth, durable, and long-lasting surface.

Remote System: Enhanced Control And Safety

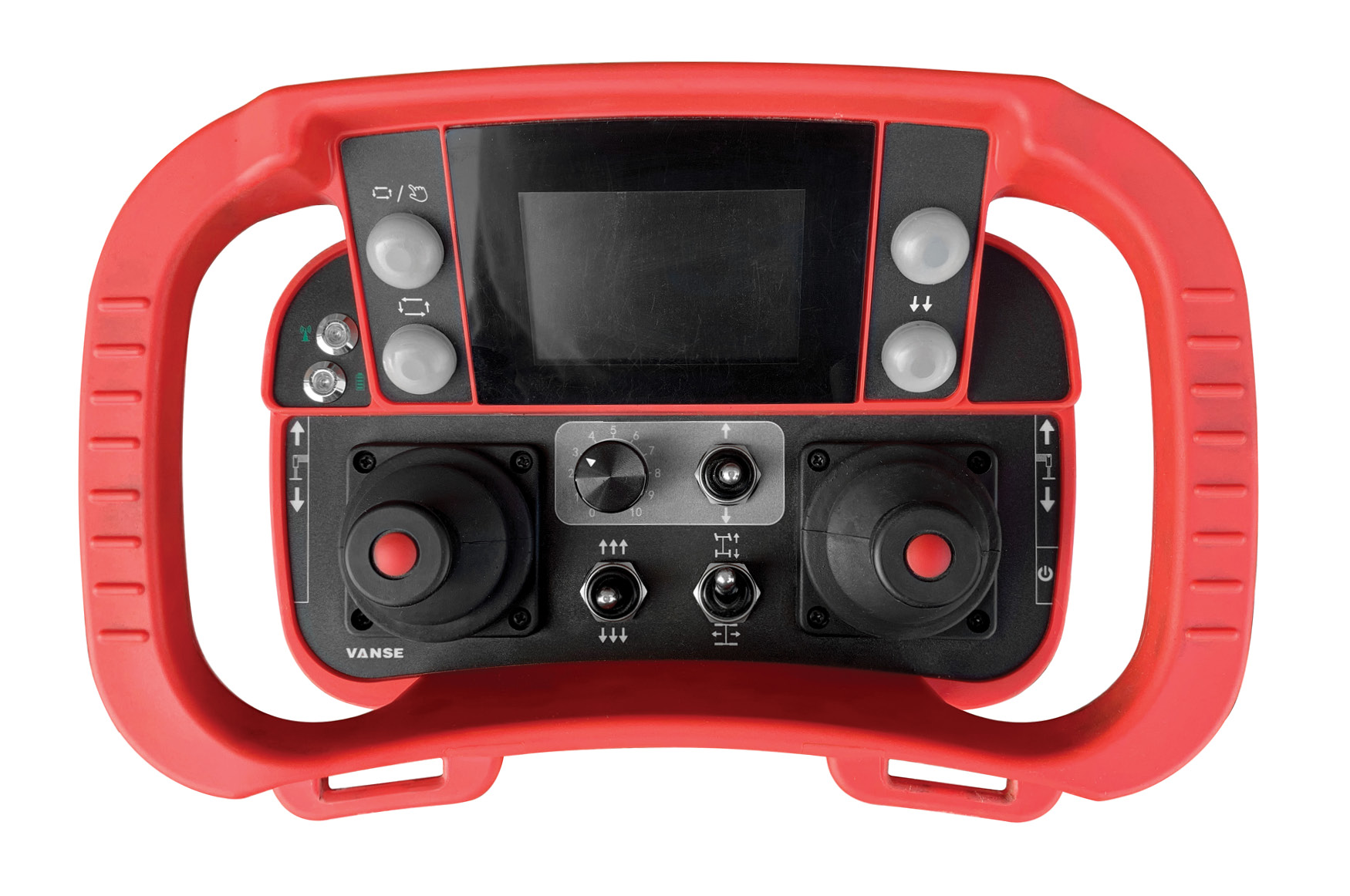

The advanced remote system of the YZS2-4 is a game-changer for on-site operations. This provides remote electronic control servo hydraulic control for the steering system, allowing the operator to select between two-wheel, four-wheel, or crab-shaped steering from a safe distance. The walking control system also benefits from remote control, with servo-controlled and proportional electronic control handle operation. Additionally, the telescopic boom rotation can be adjusted remotely in working mode. This not only enhances operator safety but also improves the efficiency of the leveling process by enabling quick and accurate adjustments.

Engine: Power And Compliance For Uninterrupted Performance

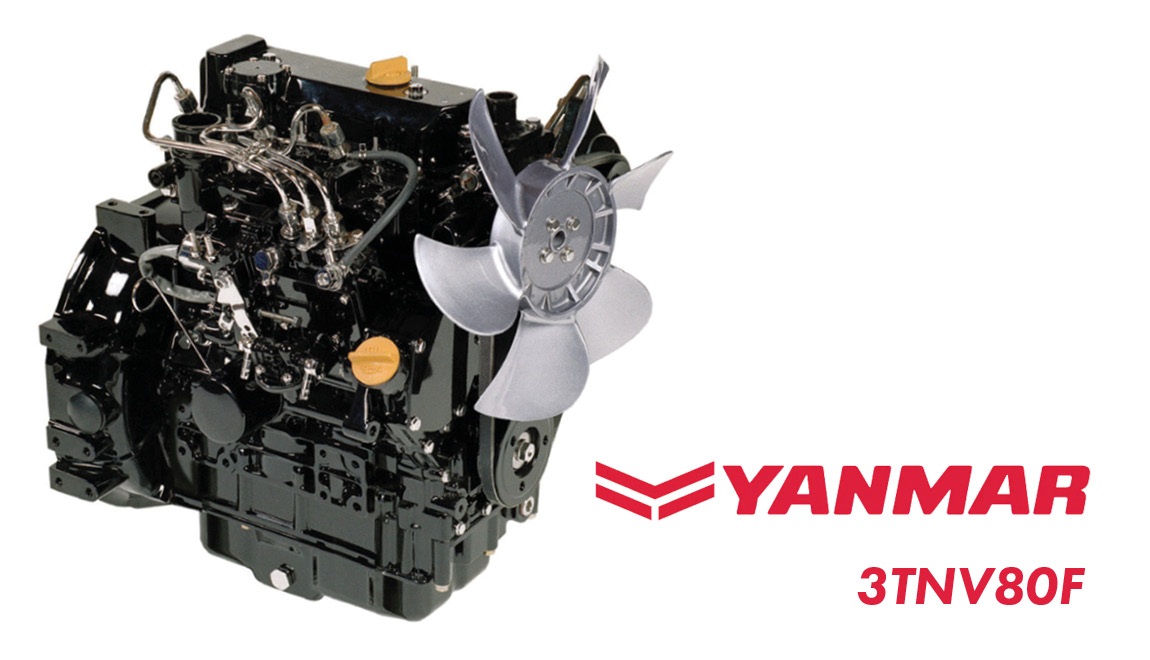

At the heart of the VANSE YZS2-4 is the YANMAR 3TNV80F engine. This engine embodies the perfect blend of environmental responsibility and top-notch engineering prowess. It complies with the strict European emissions regulations. Boasting a substantial power output of 17.8kW at 3000RPM, the engine operates on diesel fuel and is equipped with a 70L fuel tank. This ample fuel capacity enables it to sustain continuous operation throughout an entire workday on construction sites, eliminating the hassle of frequent refuelling. As a result, it delivers unwavering and dependable power for every levelling task, ensuring optimal efficiency and productivity.

Alternative Products

Channel Radius Floats with Gearbox

In stock

Channel Radius Float Blade Only

In stock

The Gen3 MagVibe immediately turns concrete floats into vibrating floats. This concrete vibration gear utilises high frequency vibration at the float which can be controlled via remote control. It has three speeds for optimal vibration control.

In stock

Big Blue Concrete finishing bullfloat available from Speedcrete. Customise your set-up with a selection of snap handles and a knucklehead tilt-action gear box.

In stock

Steel 3 foot wide Fresno float and steel broom. Speedcrete, United Kingdom.

In stock

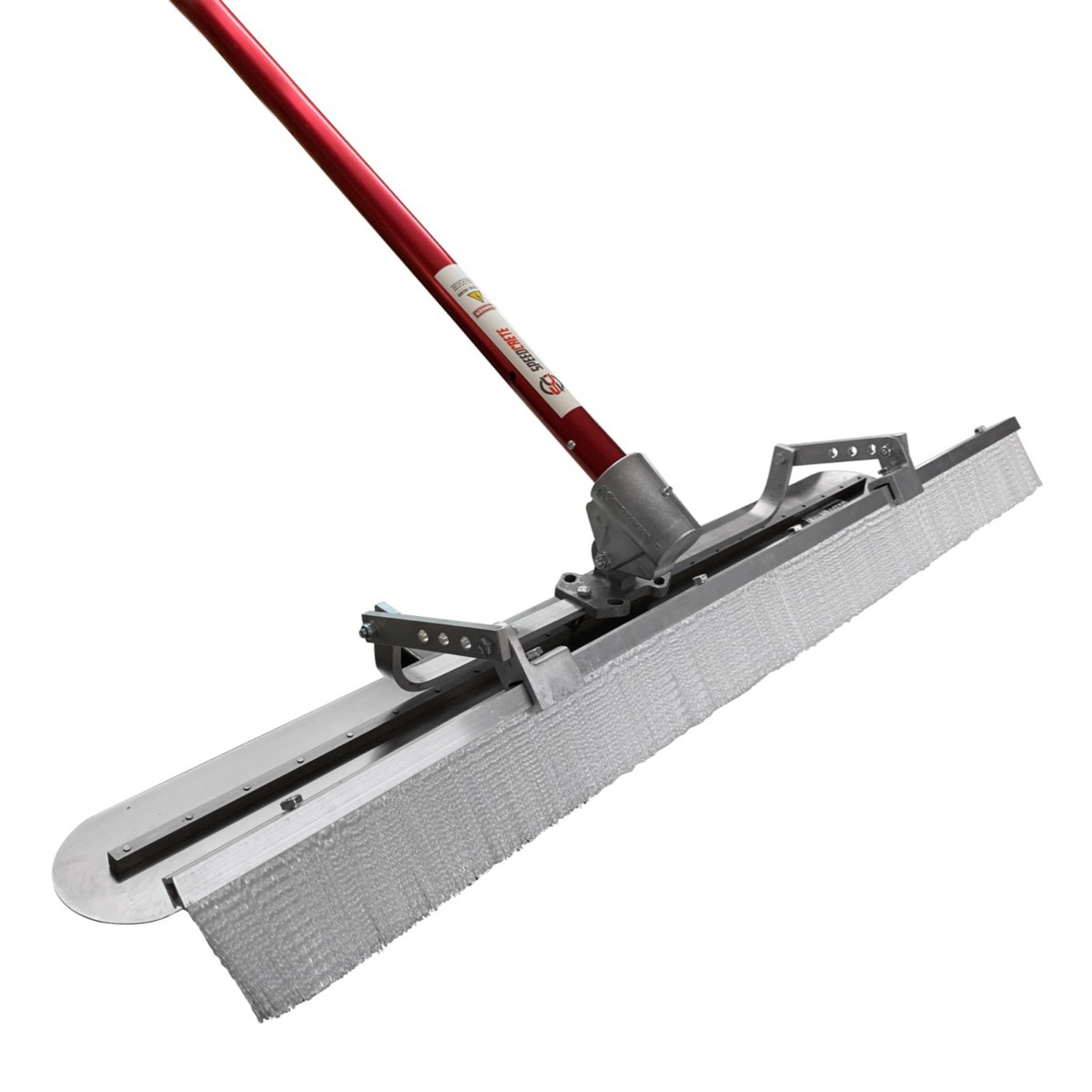

This Fresno float comes with a choice of broom strength which is attached via a bracket. The tilt-action gear box attaches to snap handles to allow reach on the concrete slab. This brushed finish concrete is popular and the kit can be bought from Speedcre
