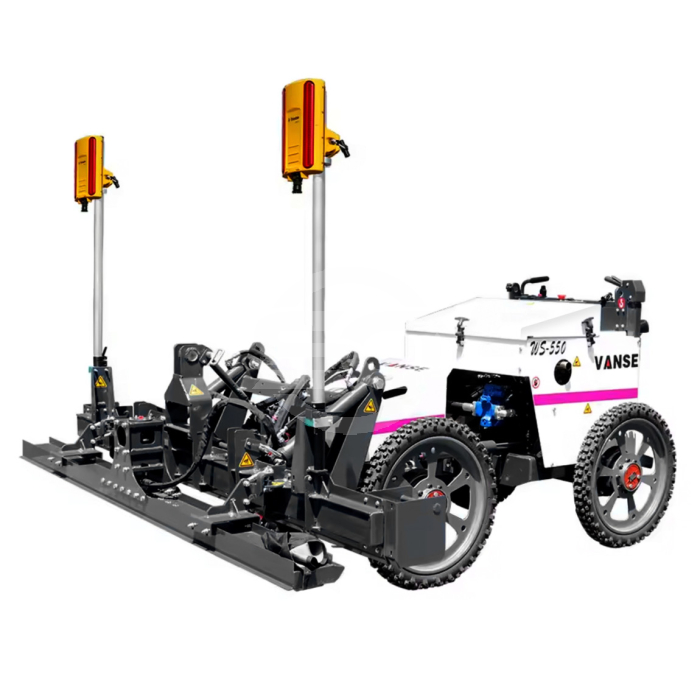

The Vanse WS550 hydraulic concrete laser controlled ride-on concrete screed levels and applies vibration across a 2.4m (7.8ft) front head. This concrete levelling machine is powered by the petrol Honda GX690 engine. Speedcrete, United Kingdom.

Laser Controlled Screed WS550

Stock Code: WS550

In stock

The Vanse WS550 hydraulic concrete laser controlled ride-on concrete screed levels and applies vibration across a 2.4m (7.8ft) front head. This concrete levelling machine is powered by the petrol Honda GX690 engine which delivers the required power and performance for high intensity professional concrete work.

• Honda engine, reliable and fuel-efficient
• Lightweight body for quick leveling operations
• Standard anti slip system
• More precise height adjustment rod, fast and precise elevation
• Long term use of switch detection and valve calibration functions can also ensure stable machine performance
• Equipped with two types of tires, suitable for different working conditions

Please take a look at our step-up model with auger: WS-940C or our telescopic Boom Screed YZS2-4.

Model: WS550
Vibration system: Electric motor
Engine model: HONDA GX690
Tyres: Inflatable narrow tires (with inflatable wide tires)
Power:18.4kW/ 25HP
Exciting force: 2000N
Fuel: Petrol
Net weight: 740kgs / 1632lbs
Fuel tank capacity: 19L
Dimensions: 3202*2576*1299mm / 10.51*8.45*4.26ft
Leveling width: 2.4m / 7.87ft
Paving mode: Shovel planning and paving

This Laser Controlled Screed come with the Leica Rugby CLX 700 dual grade horizontal laser system which offers general contractors the best-performing system for any levelling and simple slope application on site. Couple with Industry STyandard Trimble LR410 360° machine recieivers with wide working range. You'll simply get far more accurate floors.

Whether it is concrete levelling, single or dual slope, the CLX-700 rotating laser delivers ultimate accuracy all day long.

Tripod, recievers plus measurment staff come with this purchase.
