Topcon RL-H5 Laser Level Kit

CALL for Availability
Stock Code:
Topcon lasers give market leading performance and accuracy especially critical to produce a level and accurate floor. Ensure you insist on a premium quality level from Topcon to maintain accuracy across the whole concrete slab. Cheaper lasers are prone to poor tolerance's the further you get from the laser source and will give inconsistent performance

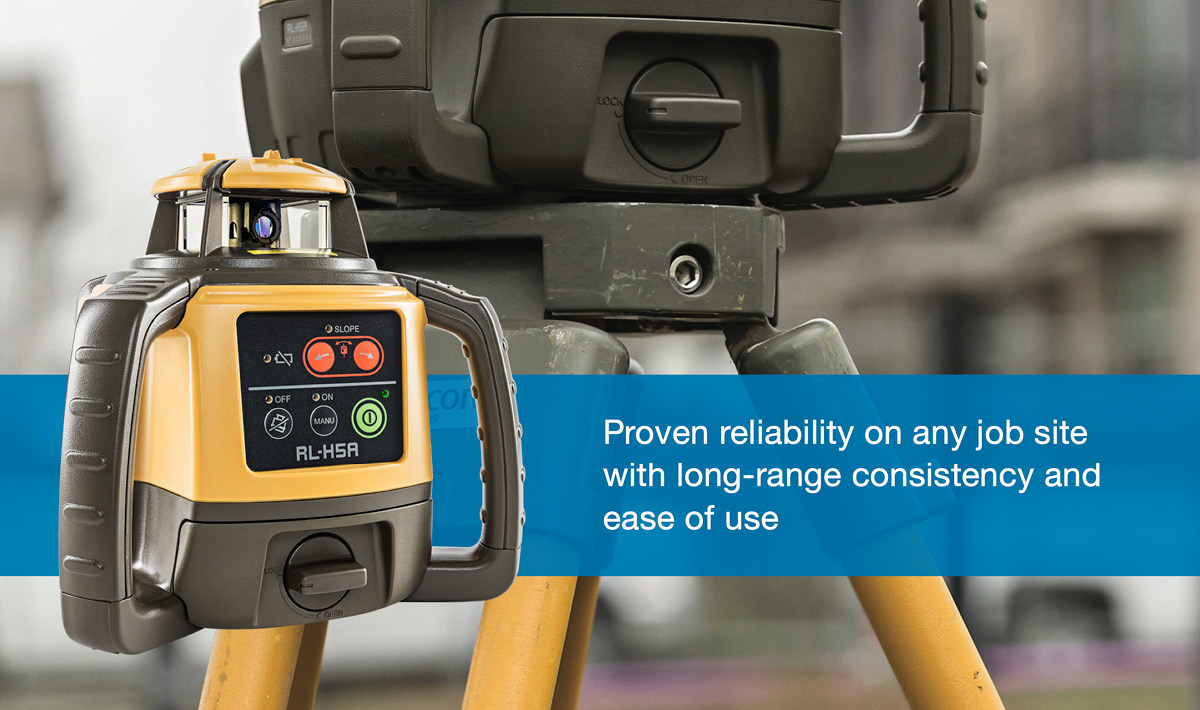

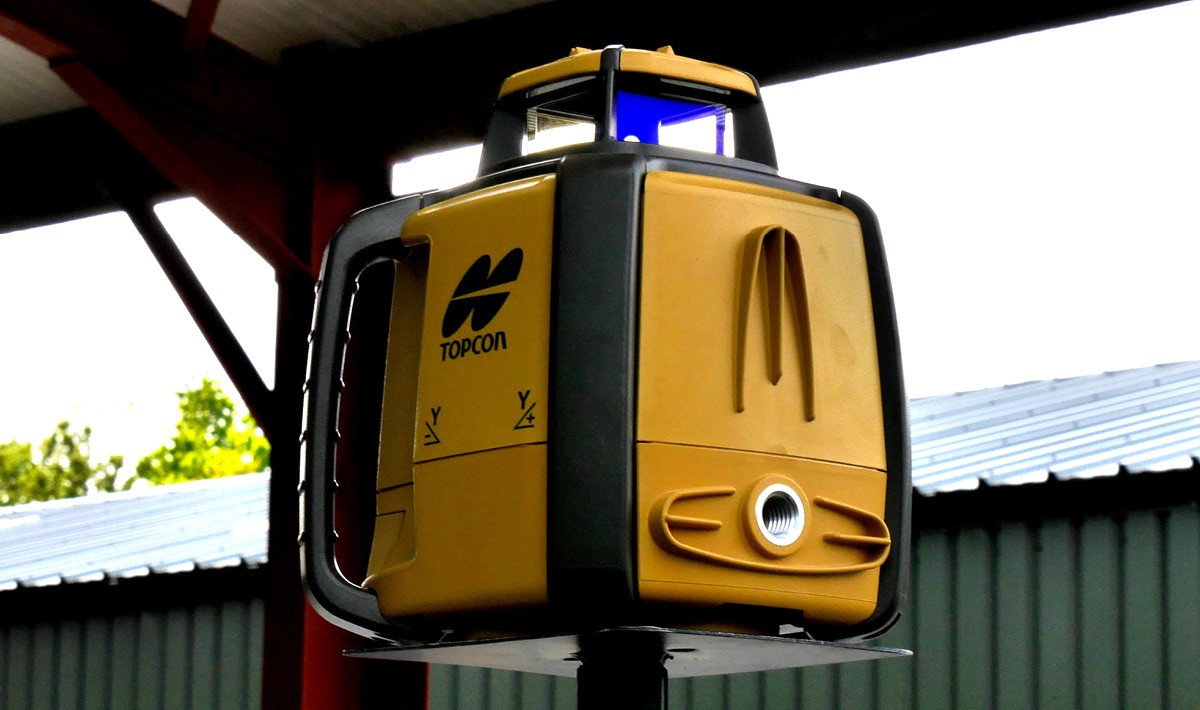

Topcon's RL-H5 auto-leveling laser combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arch seconds meaning whether you're checking grade or setting batter boards you're going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600ft. (800m) diameter working radius making it a great reference for machine mounted receivers.

The Topcon RL-H5 features a manual slope system allowing for the accurate construction of slopes across your entire work area. It's high accuracy of +/- 1.9mm @50mtrs is perfect for the construction of floors and tolerance critical applications.

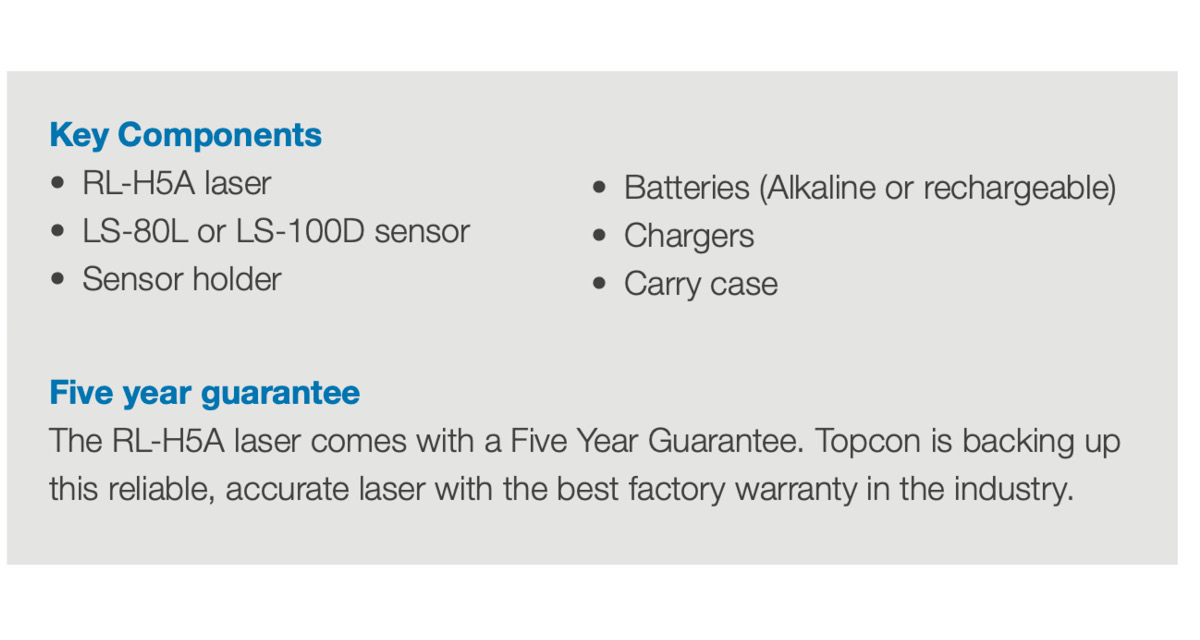

The RL-H5 comes with a 5 year guarantee.

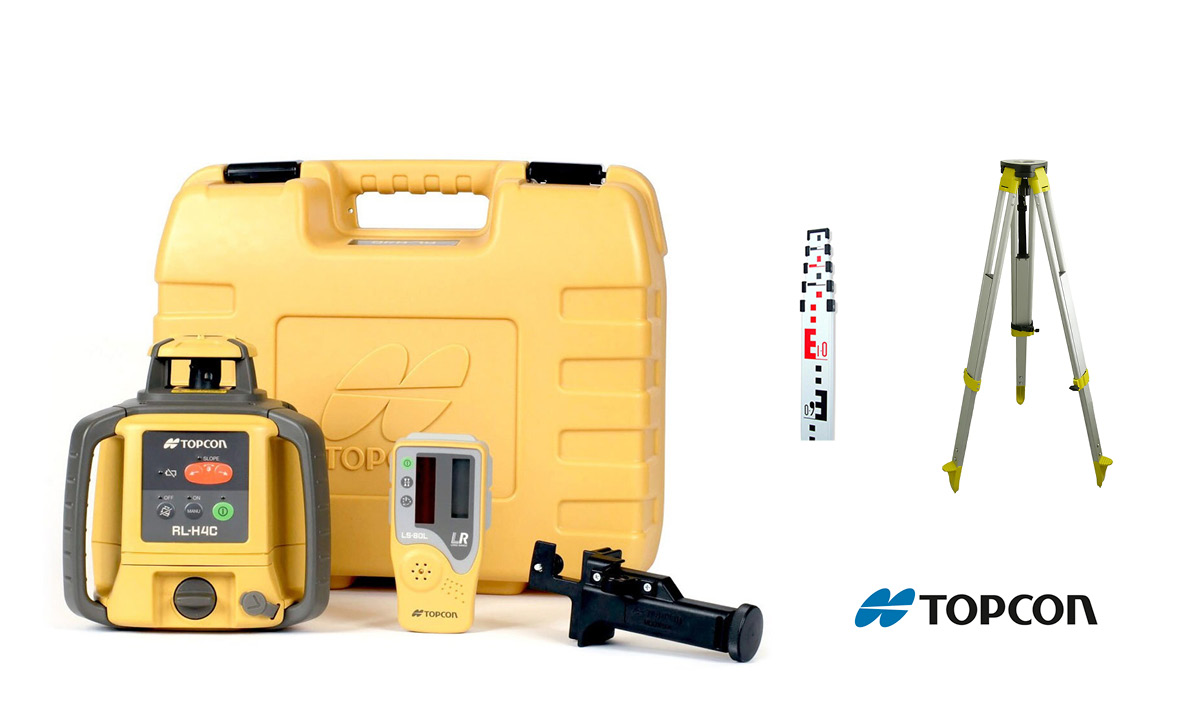

Our Topcon RLH5 Kit comes complete with an advanced LS1000 receiver which gives mm readouts of high low spots plus visual and audio indications of level.

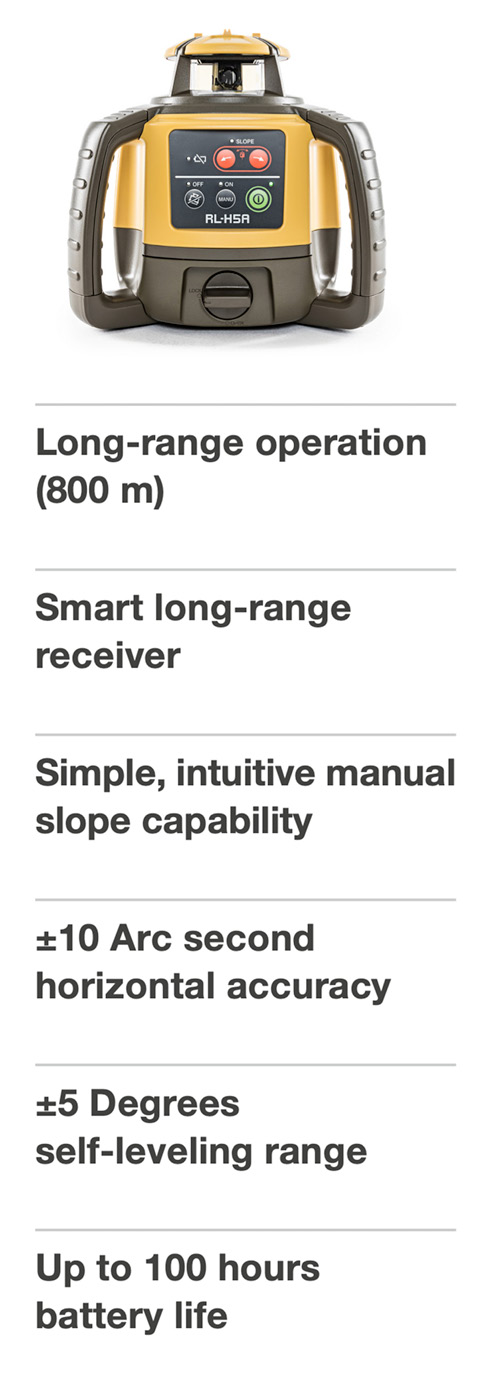

  • Simple, intuitive manual slope match capability with automatic cross axis self-leveling
  • Fast, automatic self-leveling
  • Ruggedized construction with dual handles and IP66 water-resistant housing
  • NEW LS1000 Advanced Long-Distance laser sensor with mm read out of high/low measurement
  • Up to 100 hours of production from dry or rechargeable batteries
  • Automatic height of instrument alert (HI alert)
  • Optimally focused beam provides long 2,600ft. (800m) operating radius
  • Machine control compatible
  • 10 arc second accuracy
  • Universal rod clamp for LS series sensor
  • New ruggedized carrying case that fits standard package plus extra LS sensor and LS-B10 machine mounted laser sensor.*
  • Extra LS sensor and LS-B10 sold separately.


Accuracy Horizontal ±[email protected]/td>
Self-leveling Range Horizontal ±5°
Working Area(diameter) 2,600 ft,800mtr
Rotation Speed (R.P.M.) 600r.p.m.
Light Source Visible laser
Laser Power 2.4mW
Laser Class Laser safety CDRH(FDA) IIIa JIS/IEC 3R
Water proof/ dust-resistant IP66
Operating time 4D-CELL Alkaline manganese dry battery:100H
  Ni-MH battery pack BT-67Q :60H
Operating temperature -4°F ~ 122°F (-20°C+50°C)
Size 177(L) × 195.6(W)× 216.5 (H)mm
