Pneumatic Single Head Scabbler - SC1

CALL for Availability

Stock Code:

SC1

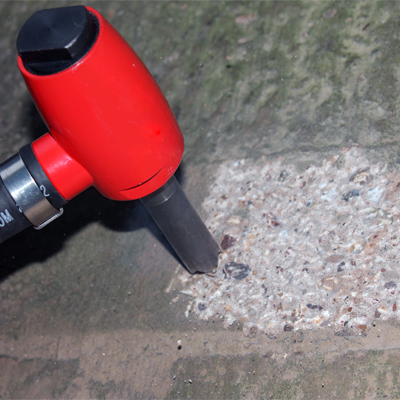

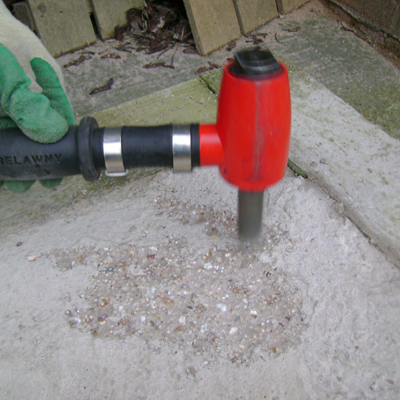

The SC1 head scabblers is a cost effective tool for roughening and preparing concrete in larger areas such as walls and columns. The optional TVS® vacuum shroud allows the connection of an industrial dust collector for collecting nuisance and hazardous dust for protection of operators and environment.

Applications:

Removal of laitance
Roughening and exposing aggregate
Preparing joints and cracks
Removing existing coatings
Reduction and levelling

Features:

Single replaceable tough carbide tipped piston for fast production and long service life
Sturdy top cap design for easy maintenance and reassembly
Heavy duty cast body to suit the heaviest of applications
Trelawny Vibro-Lo™ vibration reduction system for operator safety

Skip to the end of the images gallery

Pneumatic Single Head Scabbler - SC1

Skip to the beginning of the images gallery

Related Products

Description

Specifications:

Part Number	151.6171
Weight (kg)	2.85
Length (mm)	520.00
Width (mm)	N/A
Working Height (mm)	130
Blows Per Min (BPM)	2800
Air Consumption (lps - cfm)	5.6 - 12
Air Pressure	6.2 bar (90 psi)
Air Inlet	3/8" NPT (c/w 3/8" BSP Adapter)
Noise Level (db (A))	98.5
Vibration Level - Concrete (trigger hand) Bush Primary	9.4 m/s² (K= 1.13m/s² )
Vibration Level - Concrete Bush Secondary	14.1 m/s² (K=2.22m/s² )
Piston Diamter (mm)	27.0
Piston Length (mm)	111.75
Piston Stroke (mm)	26.5
