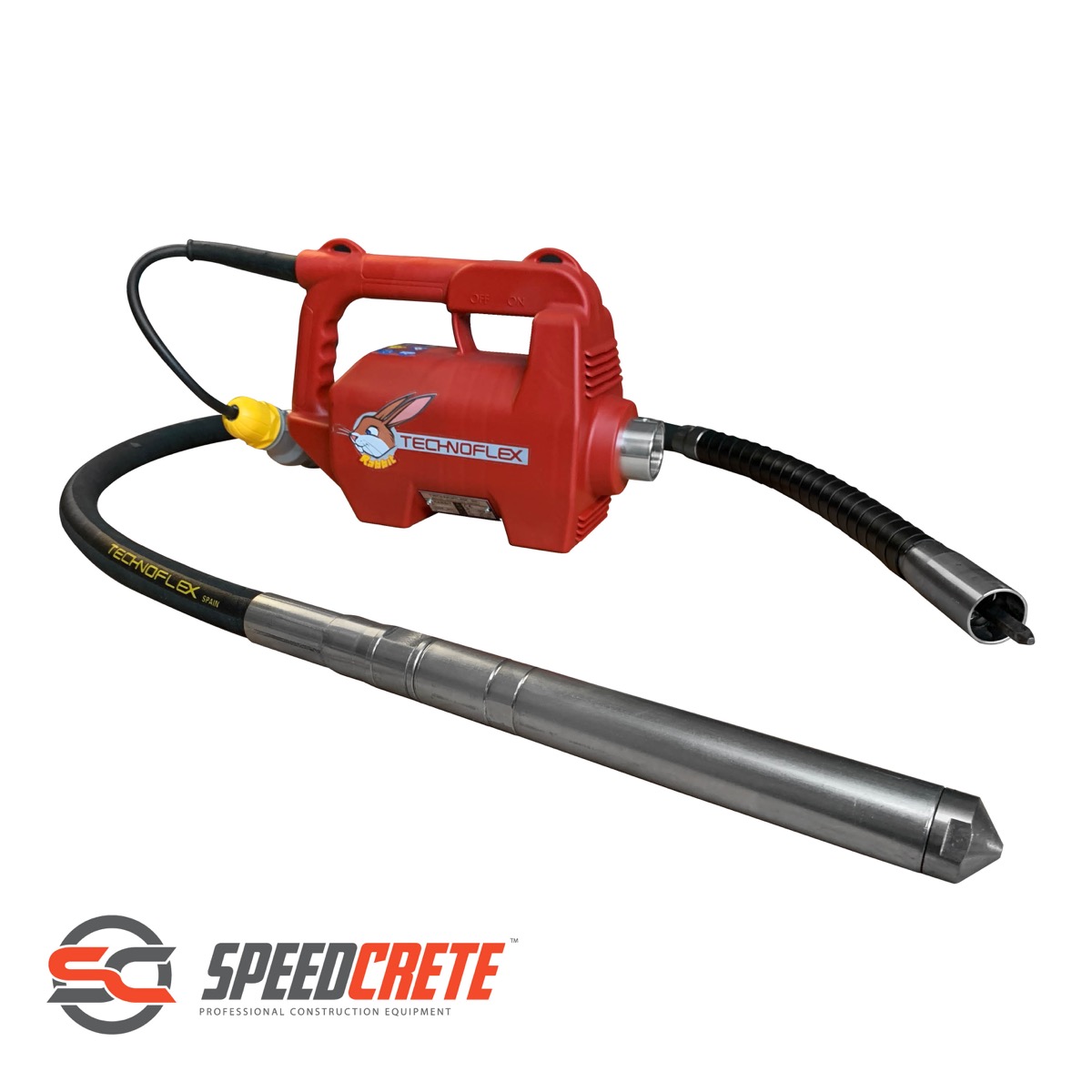

Technoflex Rabbit High Frequency Concrete Poker Kit
In stock
This Technoflex high frequency electric concrete poker is mechanically driven, this gives you high amplitude vibration and the ability to quickly change the flex and head sizes with ease.
This concrete vibrator is available in various flex length and and poker size combinations. Please scroll down to select the comination of motor plus flex/head you require.
This electric motor has been adapted for the UK market and has a double insulation feature for maximum operator protection. All technoflex flex/poker heads can be purchase separately, see accessories by scrolling down this page.
Download the guide by clicking the icon below or scroll down to view the specifications.
The Rabbit comprises of an Electric motor that powers a mechanical drive cable to the head which incorporates a double bearing to provide a high frequency 12,000 vpm's. The shafts are interchangable via a quick connect system, that allows you to quickly change flex lengths and vibrator head sizes. The Rabbit 110v Motor is held in stock for use on UK construction sites. Note for our oversea's customers, and UK sites that permit the use of 230v with RCD's, a 220v electric motor is available on special order by request.
- CE approved double isolation electric motor provides highest protection for the worker.
- Light weight.
- Great zone of action and vibration.
- Long- lasting flexible shaft
| Engines | |||
|---|---|---|---|
| Engine type | Power | Voltage | Speed |
| Single-phase electric | 2.300 W (3 Hp) |
230 V - 50 Hz (Special Order) 115 V - 60 Hz (Stocked) |
18.000 rpm (in vacuum) |
| Transmissions/Flex -Drives | |||||
|---|---|---|---|---|---|
| Length (m/in) | 1,5 / 5" | 2 / 6,6" | 3 / 10" | 4 / 13,3" | 5 / 16,6" |
| Weight (Kg/lbs) | 3,5 / 7,7" | 5 / 11" | 7,5 / 16,5" | 10 / 22" | 12,5 / 27,5" |
| Heads/Needles | ||||
|---|---|---|---|---|
| Diameter | 25 mm / 1" | 38 mm / 1 1/2" | 48 mm / 1 7/8" | 60 mm / 2 3/8" |
| Length | 315 mm / 12" | 455 mm / 18" | 495 mm / 19" | 575 mm / 23" |
| Weight | 0,8 kg / 1,7 lbs | 2,5 kg / 5,5 lbs | 4 kg / 8,8 lbs | 6 kg / 3,2 lbs |
| Capacity (m3/h) | 1,5 | 10 | 17 | 20 |
| Action Zone (cm) | 20 | 70 | 90 | 110 |
| Frequency (vpm) | 12.000 | 12.000 | 12.000 | 12.000 |
